Pharmaceutical Passbox
Pass Boxes are utilized for the aseptic transfer of materials between two controlled areas without the need for personnel movement

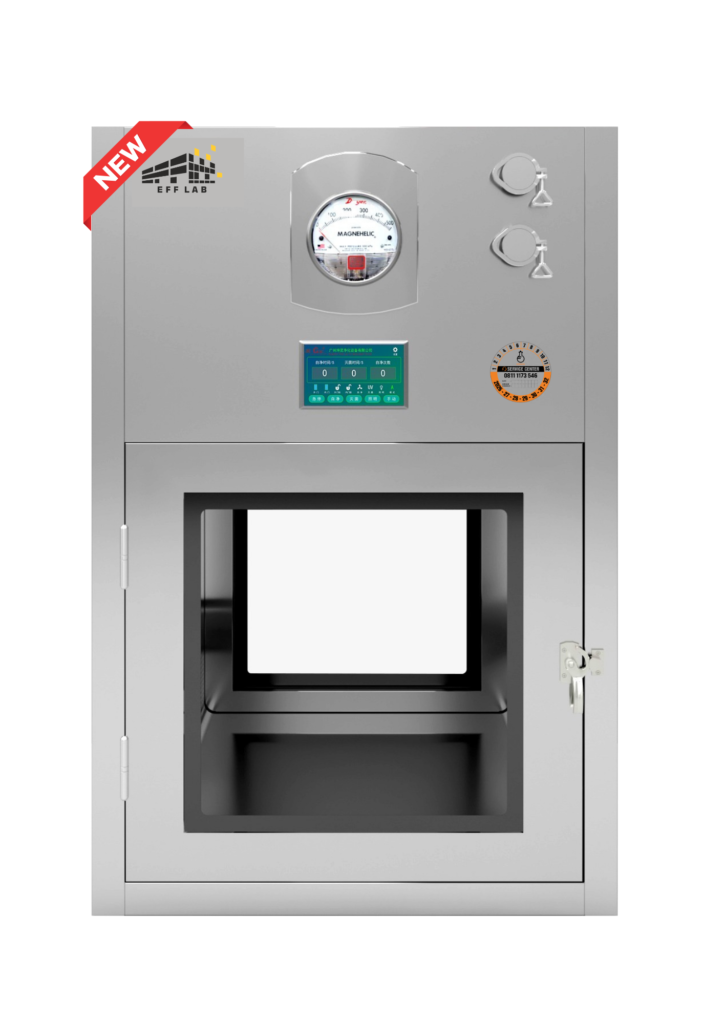

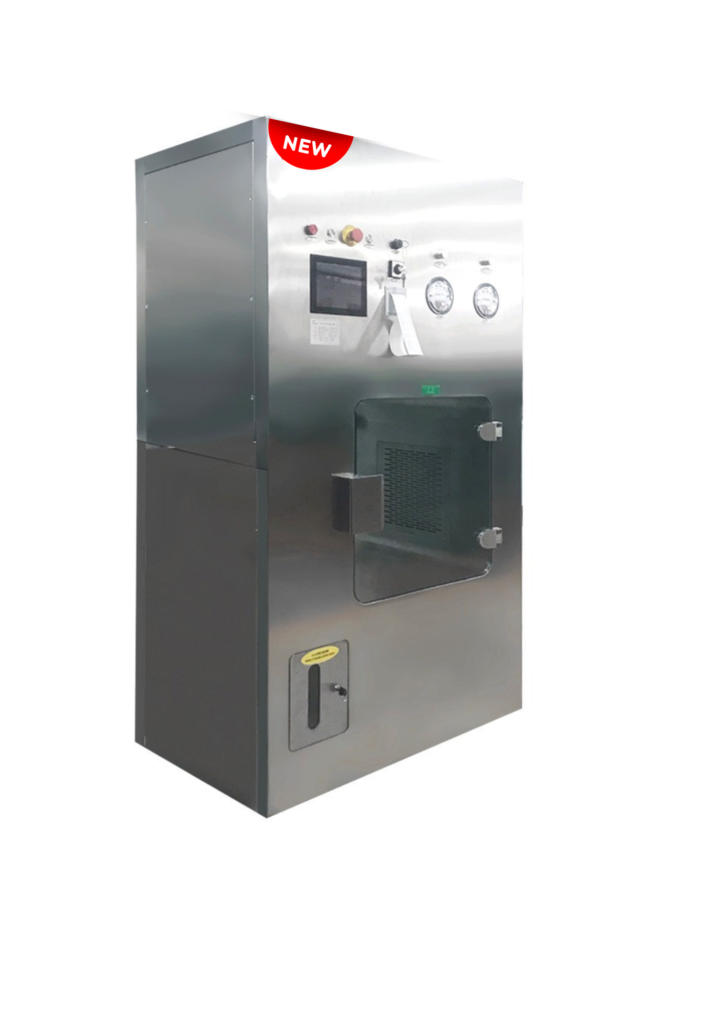

Vertical Dynamic Passbox
EFFLAB pass box a positive pressure chamber surrounded chamber more protective. Housing made of full AISI 304 stainless steel, 1.0 mm. Interior with fully rounded corners, seamless structure; clean appearance and easy to clean. Equipped with double-layer tempered glass viewing windows for clear observation of items inside the chamber. Strong and ergonomic height of dimension will make comfort for personal researches, and profesional laboratory.
Top-mounted 8 W UV sterilization lamp; H14 gel- seal HEPA filter, filtration efficiency 99.997% @ 0.3 µm. Cleanliness class: Class 100 (some type)*.
Soft-touch metal control panel; double-door electronic interlock. When either door is opened and then closed, the unit enters self-cleaning mode with a 30 s air purge; doors cannot be opened during self- cleaning*.
UV Lamp will optimize working area from contaminant that sample contamination. for personel, glass sash UV Approve will protect in daily activity in laboratory.
Functional, Cleanliness class: Class 100 working with facilities and good arrangement will give very good results. Supported with powerfull blowers will make the air flow rate stable at the rate specified in the standard. Always give a protection to personal and sample*.
Bacterial growth in cold temperatures will be inhibited by stainless steel 304 in each sheet of material used.
*EFFLAB 590-990 DX
Vertical Dinamic Passbox safety transfer System

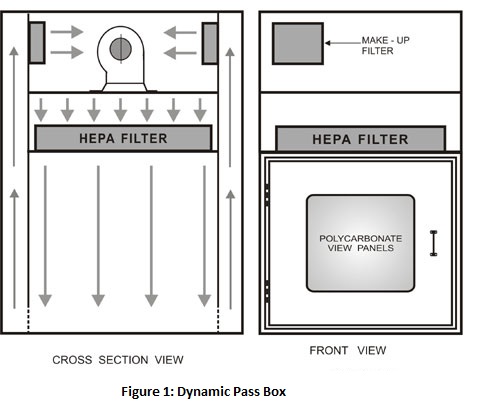

Ambient air is pulled through upper grille to create inflow, without going into the workIng surface area. HEPA Filter will impaction-interception-diffusion particle, to achieve ISO class 100 (except static passbox )
UV Lamp will optimize working area from contaminant that sample contamination. for personel, glass sash UV Approve will protect in daily activity in laboratory.
The design was optimized to give performance, that provides operator ergonomic design degree, so this support more productivity in laboratory
Applications:
- Manufacturing Facilities
- Pharmaceutical Industry
- Cleanroom and Controlled Environments
- GMP facilities
- Medical industry
- Nanotechnology
- Semiconductors Industry
- Space Industry
- Automotive Industry

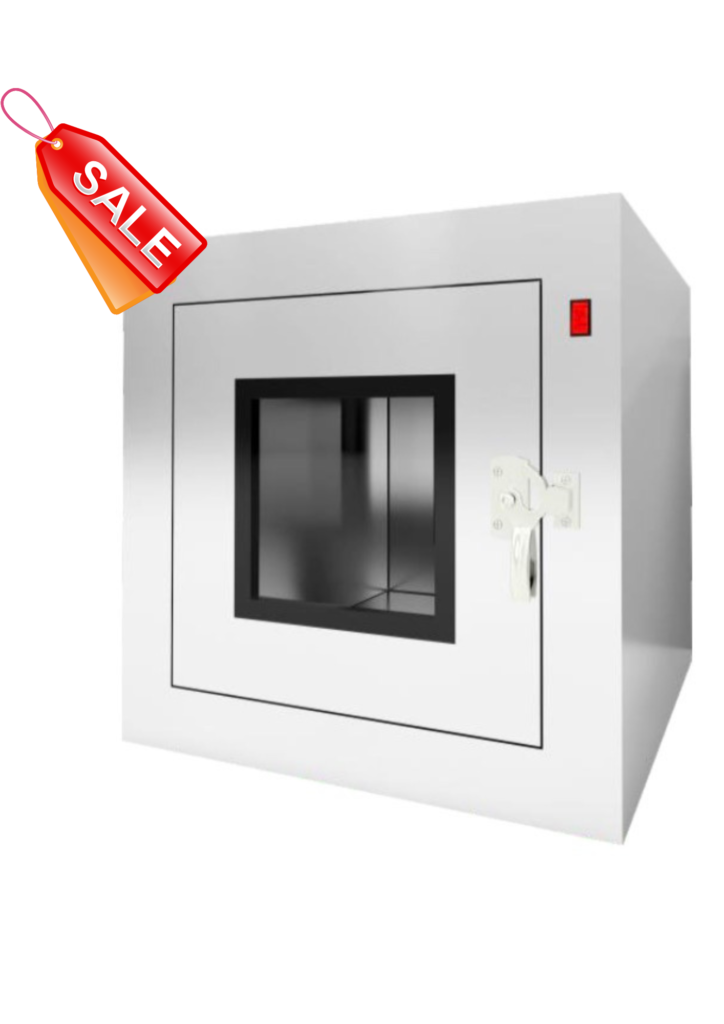

Static Passbox
Static Passbox.
A pass box is a controlled transfer chamber installed between two adjacent rooms with different cleanliness or containment classifications. It allows materials to be transferred while minimizing cross-contamination, maintaining room pressure differentials, and preventing simultaneous opening of both doors through an interlocking system.
Application | Laboratory, pharmaceutical, hospital, cleanroom, or industrial use. |
Type of Pass Box | Static Pass Box |
Containment Level | General laboratory, GMP cleanroom, BSL-2, BSL-3, etc. |
Internal Dimensions | Must accommodate the largest item to be transferred. |
Construction Material | Typically SS304 with smooth hygienic finish. |
Door Interlock | Mechanical or electromagnetic interlock to prevent both doors opening simultaneously. |
Air filtration | None |
Air velocity | None |
UV Sterilization | Optional; verify exposure timer and safety interlock. |
Pressure Compatibility | Compatible with the building HVAC pressure cascade. |
Cleaning Method | Easy-to-clean corners, minimal crevices, chemical resistance. |
Control System | Indicator lights, touch panel, alarms, cycle timer. |
Power Requirement | Voltage, frequency, and electrical load. |
Validation Documents | FAT, SAT, IQ, OQ, filter test, airflow test, calibration certificates. |
Compliance | ISO 14644, GMP, and other applicable standards depending on the project. |
Maintenance Access | Easy filter replacement and service access. |
Detail spesification :
Pass Box, Static Type
- Double-door stainless steel transfer chamber
- SS304 construction
- Electromagnetic door interlock
- None HEPA
- None Air velocity
- LED lighting
- UV lamp with safety interlock (optional)
- None Digital control panel
- Internal size: 600(W) × 600(D) × 600(H) mm
- External size : 770(W) x 670(D) x 770(H) mm
- Power supply: 220 VAC, 50 Hz

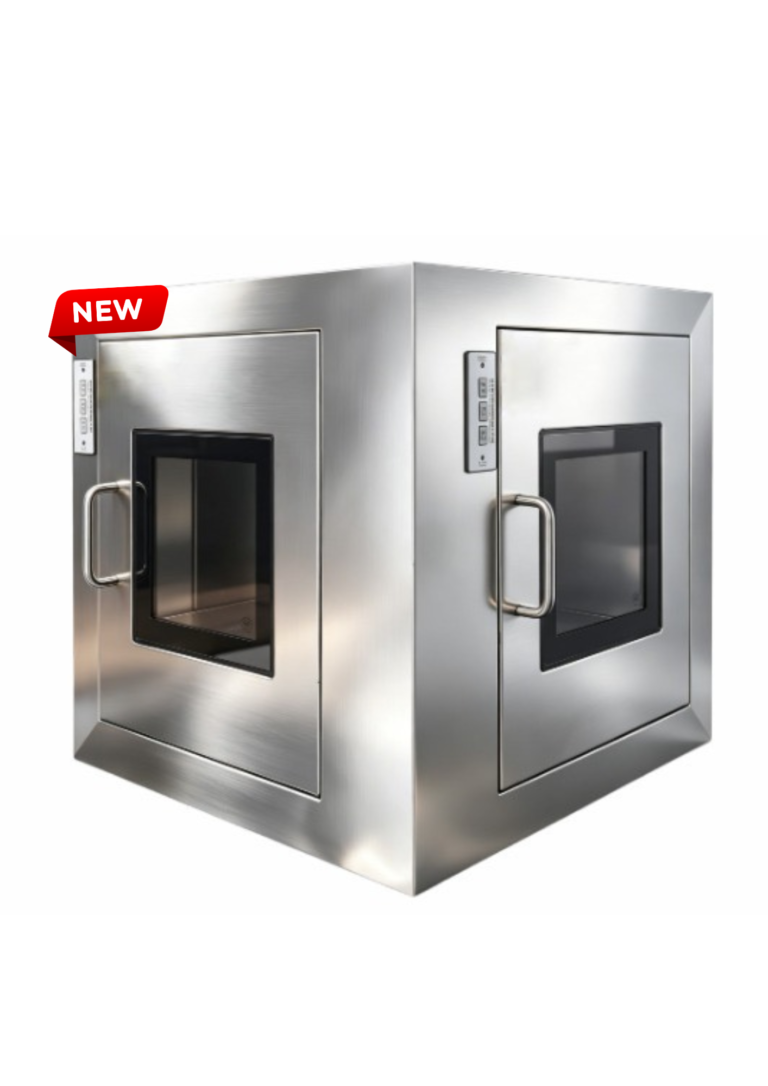

Three way passbox
A three-way pass box is a controlled transfer chamber with three interlocked access doors, designed to connect three different rooms while ensuring that only one door can be opened at a time. It reduces the number of pass boxes required, optimizes floor space, and maintains environmental segregation between connected areas.
When Should You Choose a Three-Way Pass Box?
Choose a three-way pass box when:
- Three adjacent rooms require controlled material exchange.
- Process efficiency is improved by using one central transfer point.
- Independent environmental conditions must be maintained in each room.
- Facility layout or available wall space limits installation of multiple pass boxes.
- Reducing construction costs and simplifying workflow are priorities.
- Materials must move between three connected processing areas.
- Multiple operators require access from different rooms.
- Floor space is limited, making several separate pass boxes impractical.
- The process requires segregation while maintaining efficient logistics.
- The number of operator movements through doors should be minimized to reduce contamination risk and improve productivity.
Avoid selecting a three-way pass box if materials only move between two rooms or if each transfer route requires dedicated segregation for regulatory or process reasons.

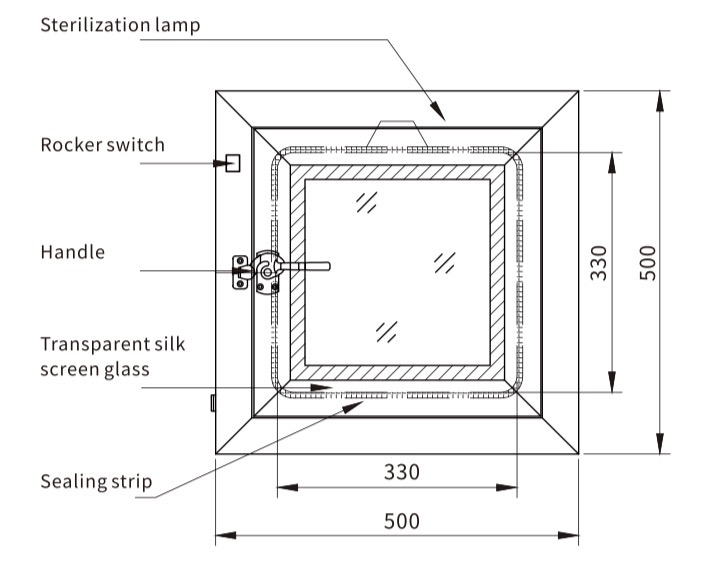

Detail spesification :
Pass Box, Static Type
- Double-door stainless steel transfer chamber
- SS304 construction
- Electromagnetic door interlock
- None HEPA
- None Air velocity
- LED lighting
- UV lamp with safety interlock (optional)
- None Digital control panel
- Internal size: 500(W) × 500(D) × 500(H) mm
- External size : 695(W) x 570(D) x 670(H) mm
- Power supply: 220 VAC, 50 Hz
